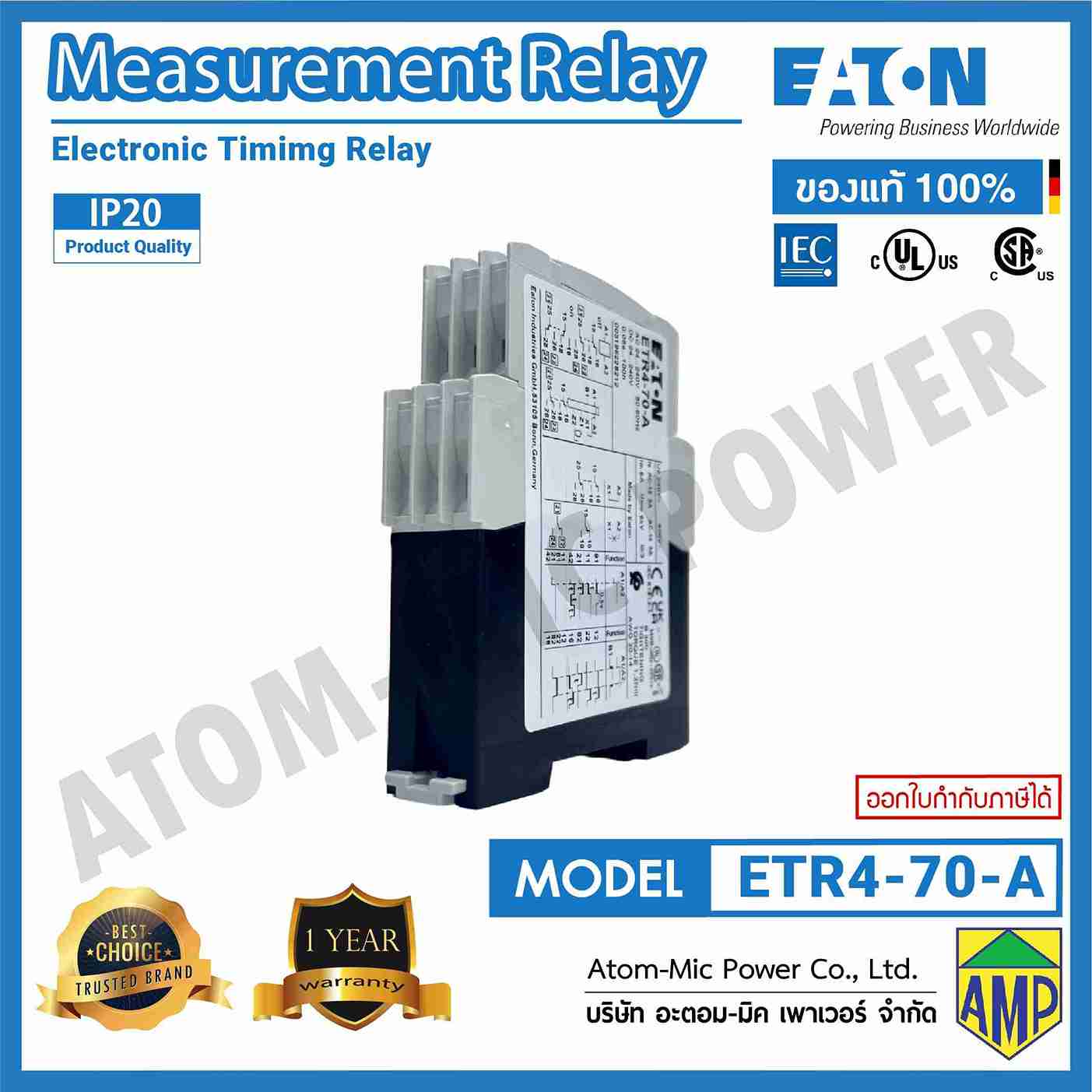

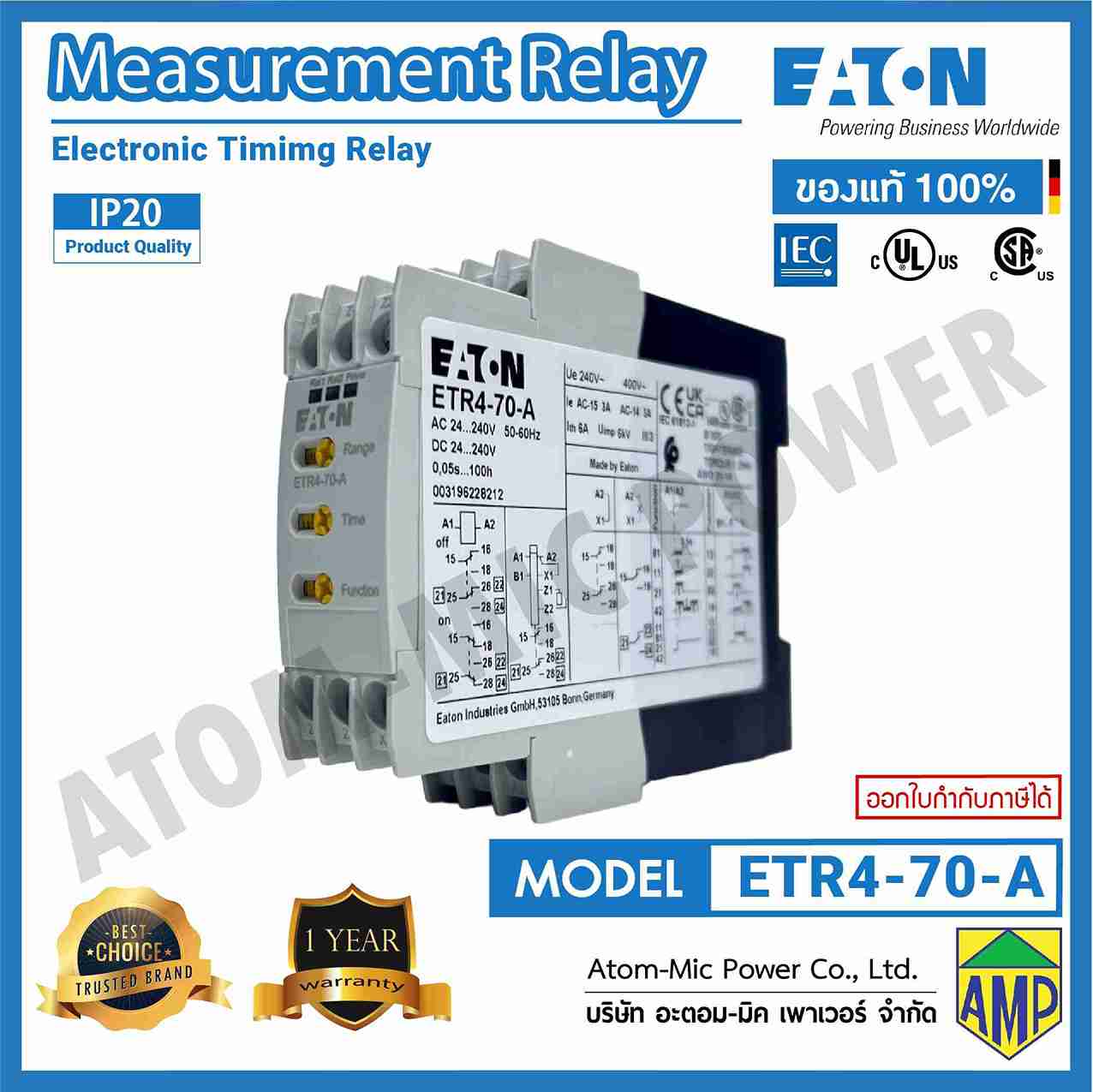

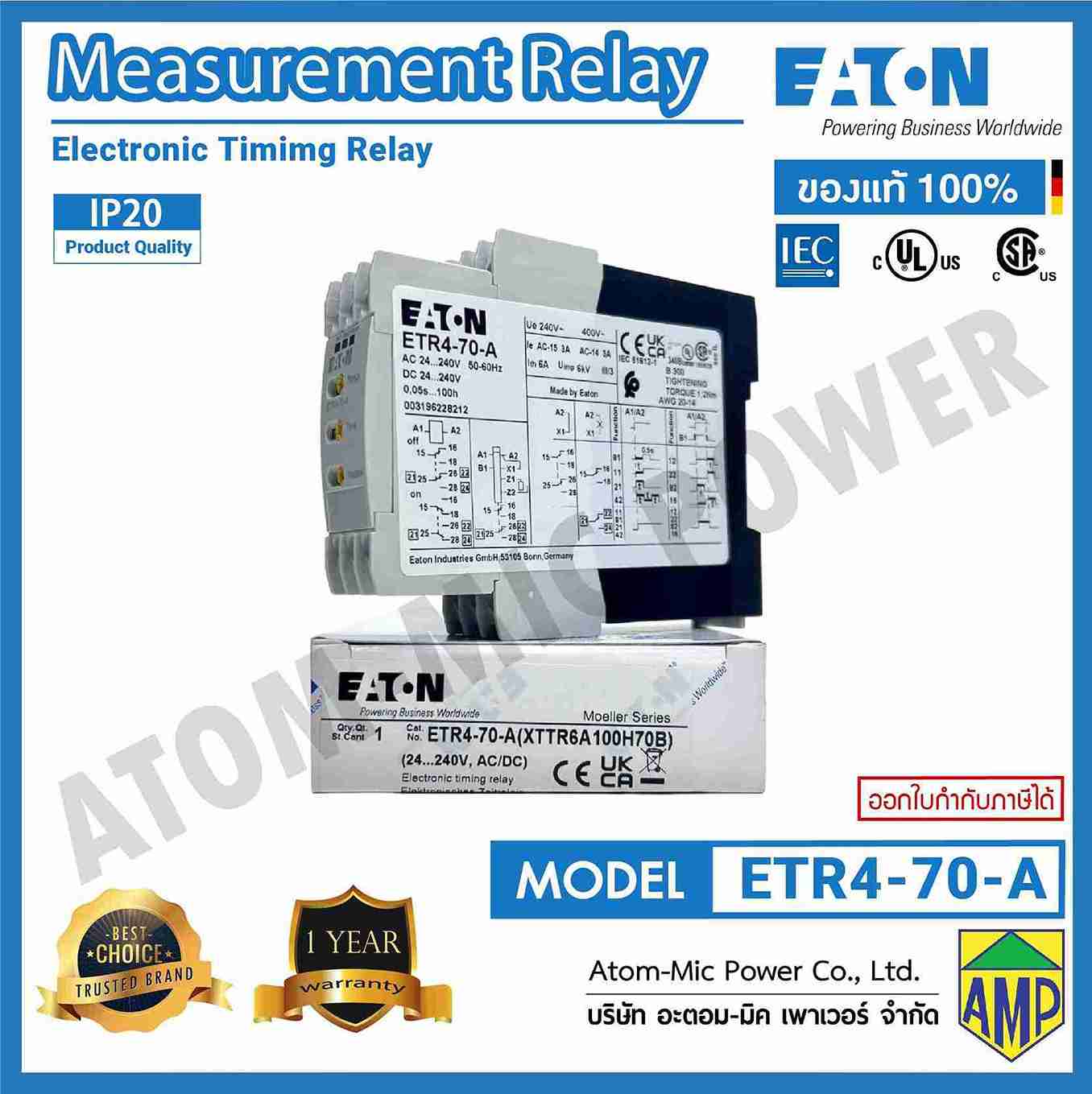

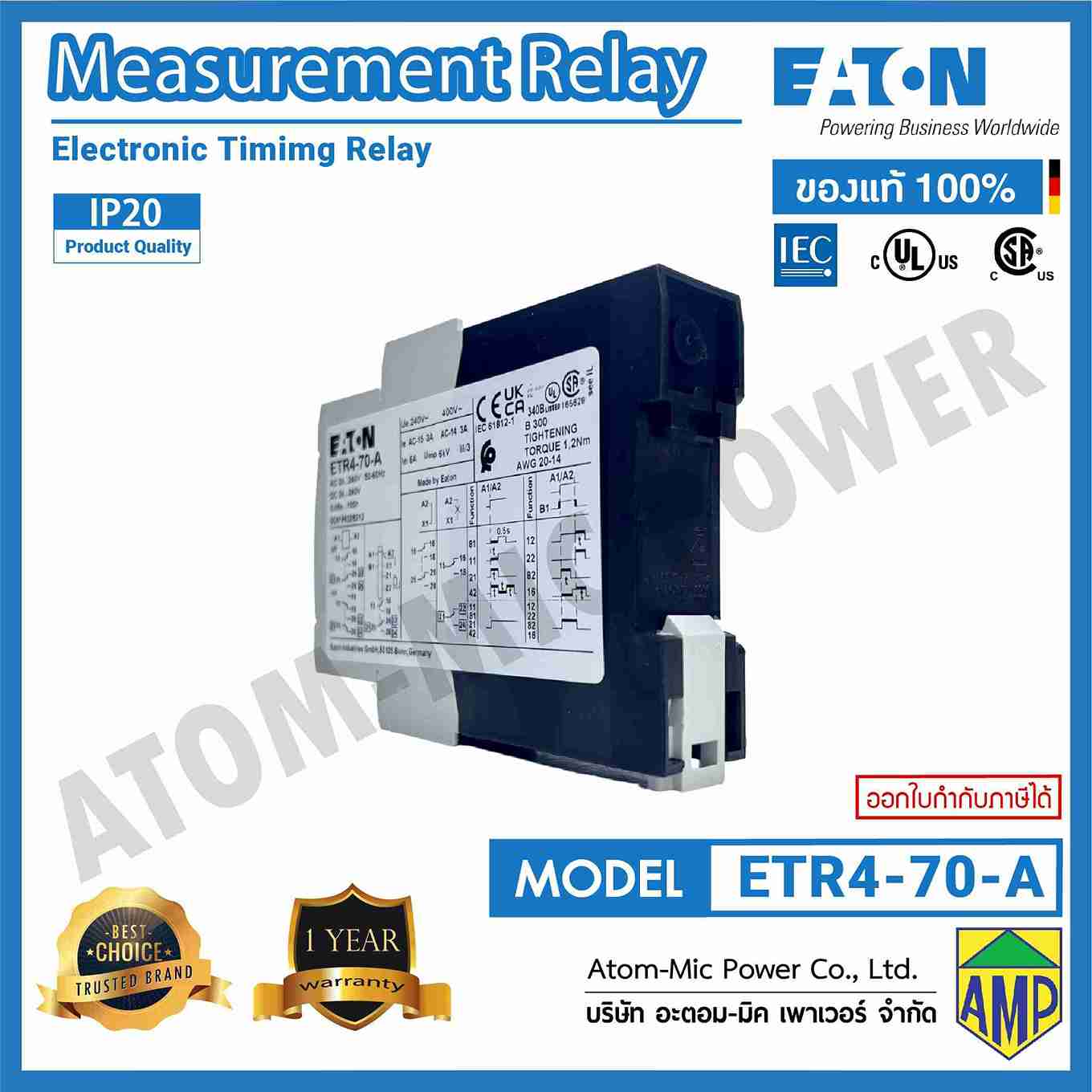

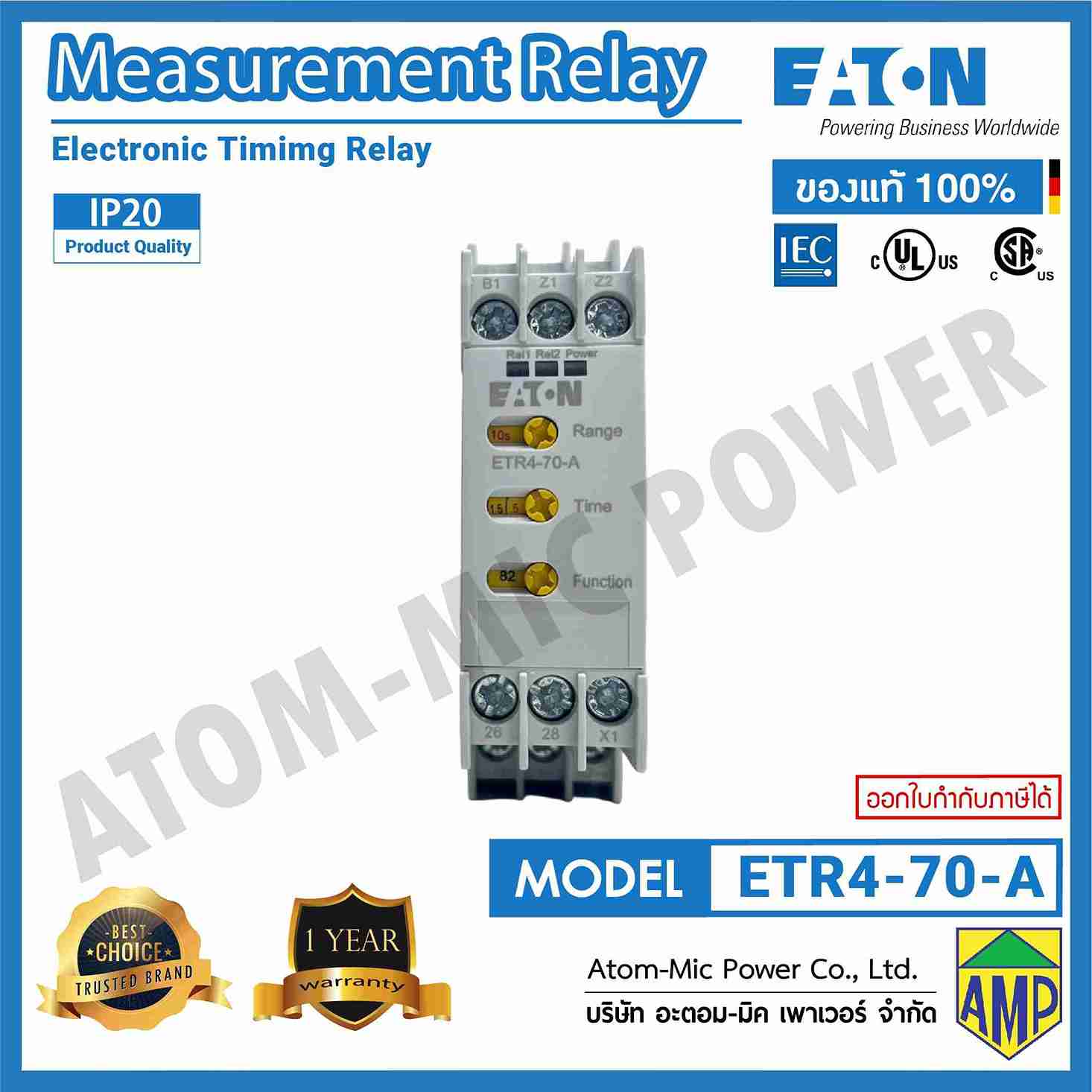

EATON – MEASUREMENT RELAY (ETR4-70-A)

Part no. : ETR4-70-A
Product Length/Depth : 103 millimetre
Product height : 83 millimetre
Product width : 23 millimetre
Product Type : Timing relay
Electric connection type : Screw connection
Degree of protection : IP20
Number of contacts (change-over contacts) : 2
Pollution degree : 2
Suitable for : DIN rail (top hat rail) mounting
Time range – min : 0.05 s
Time range – max : 360000 s
Type : Timer relay
Voltage type : AC/DC
Air discharge : 8 kV
Mains voltage tolerance : 24 – 240 V AC (at 50/60 Hz), 24 – 240 V DC
Nominal current : 3 A
Rated operational voltage (Ue) at AC – max : 440 V
