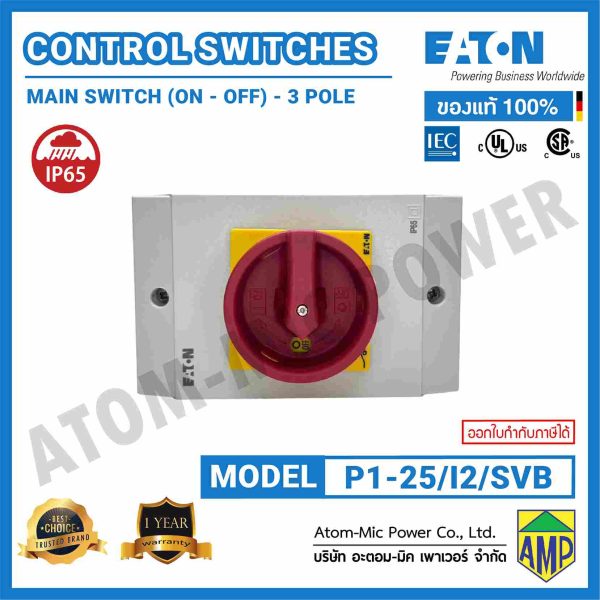

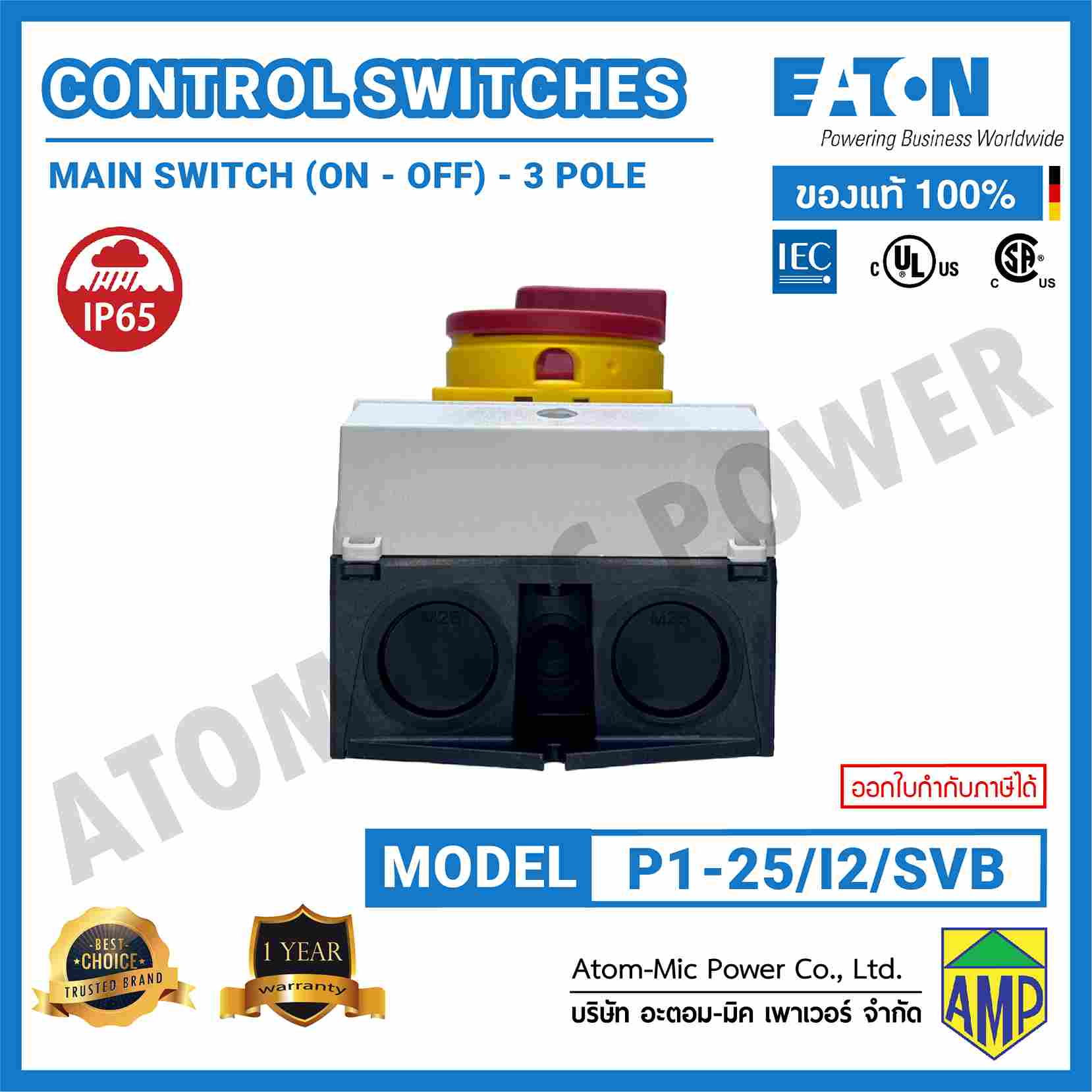

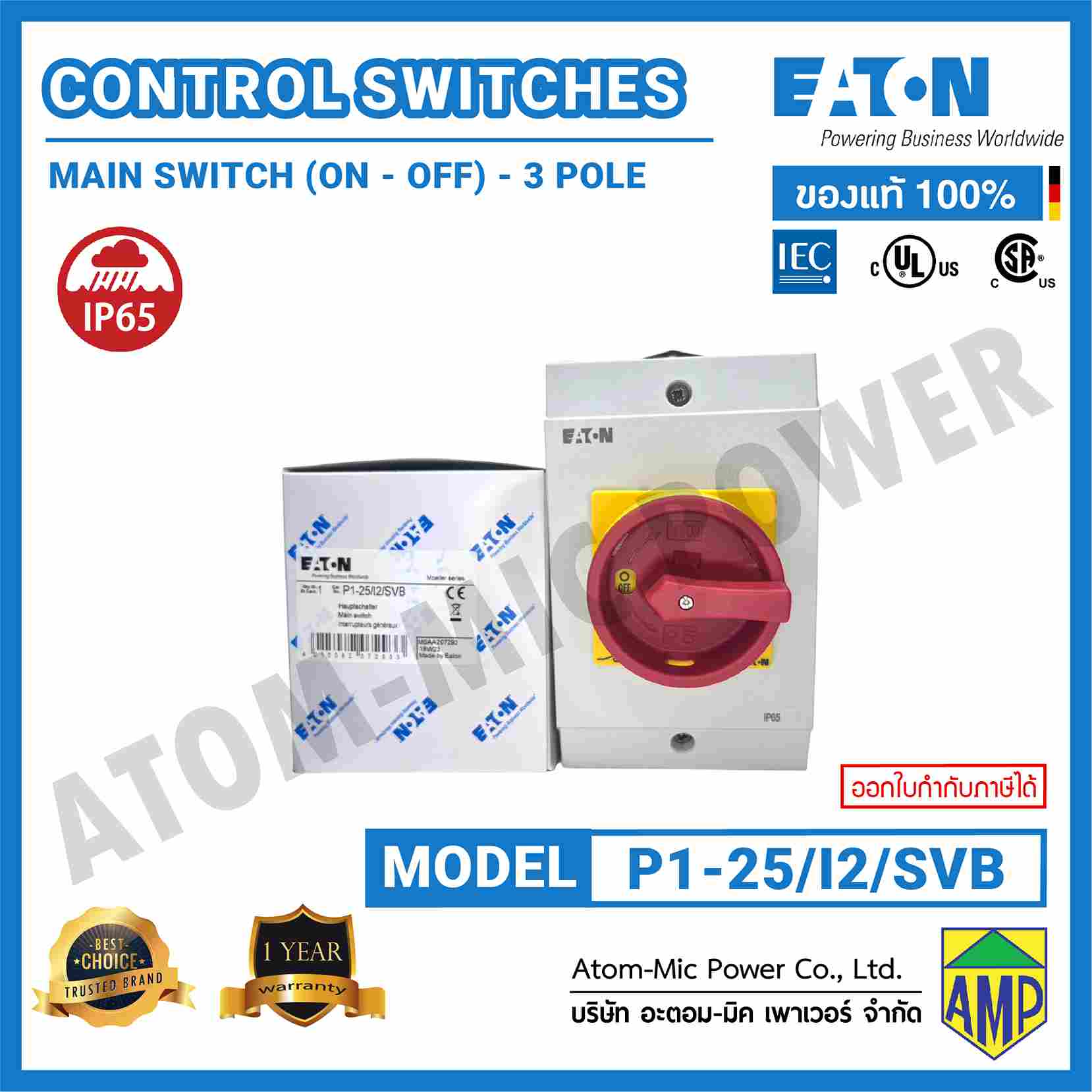

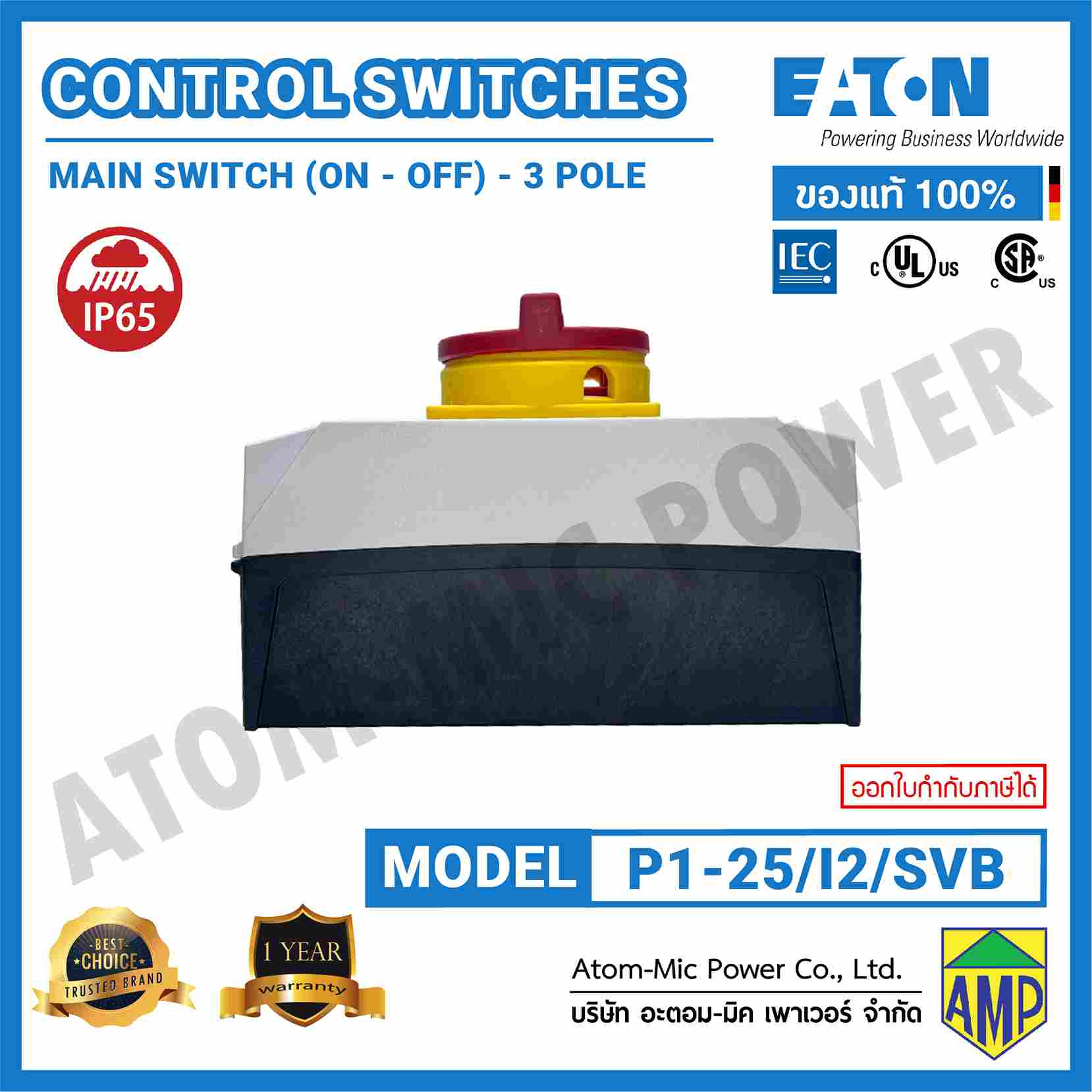

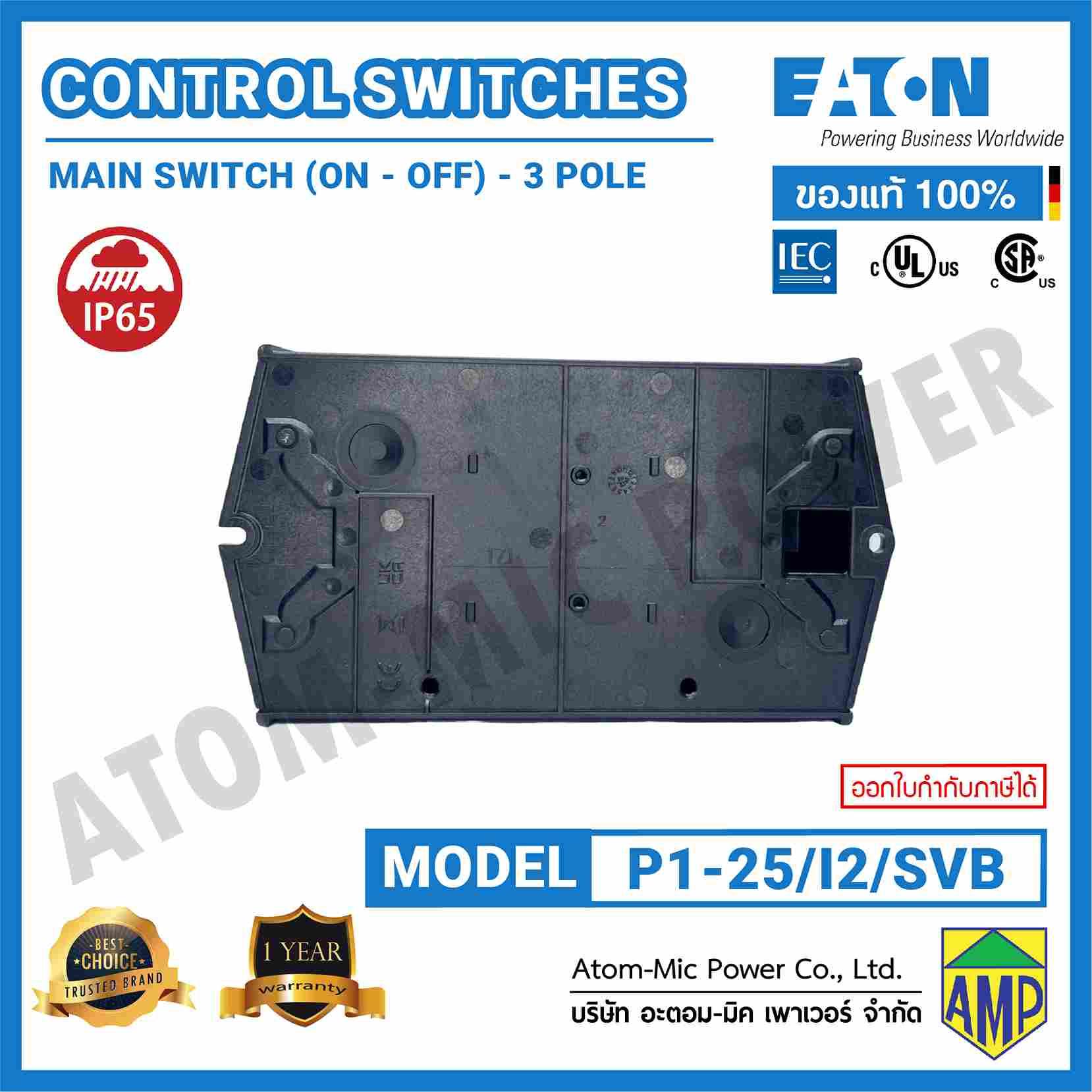

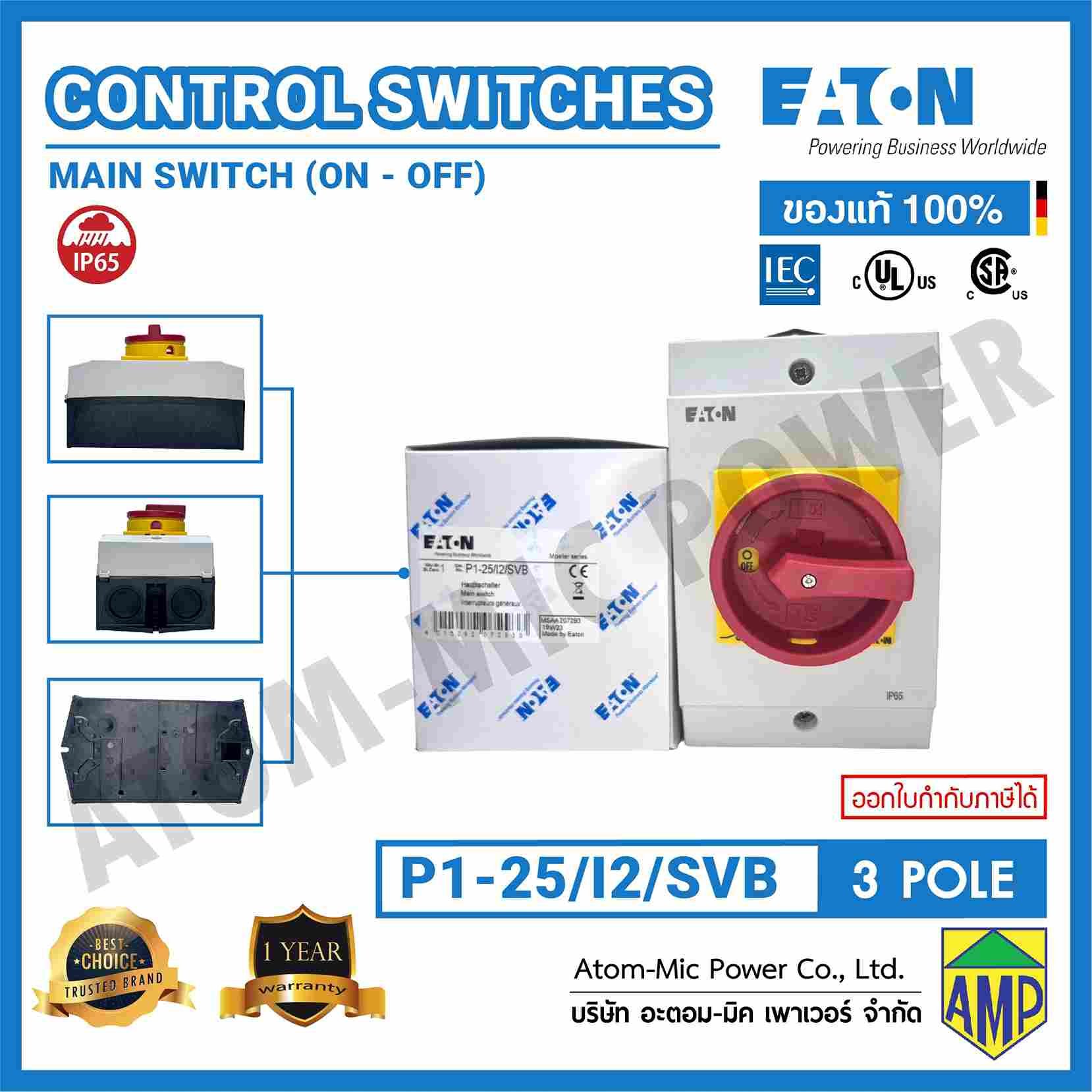

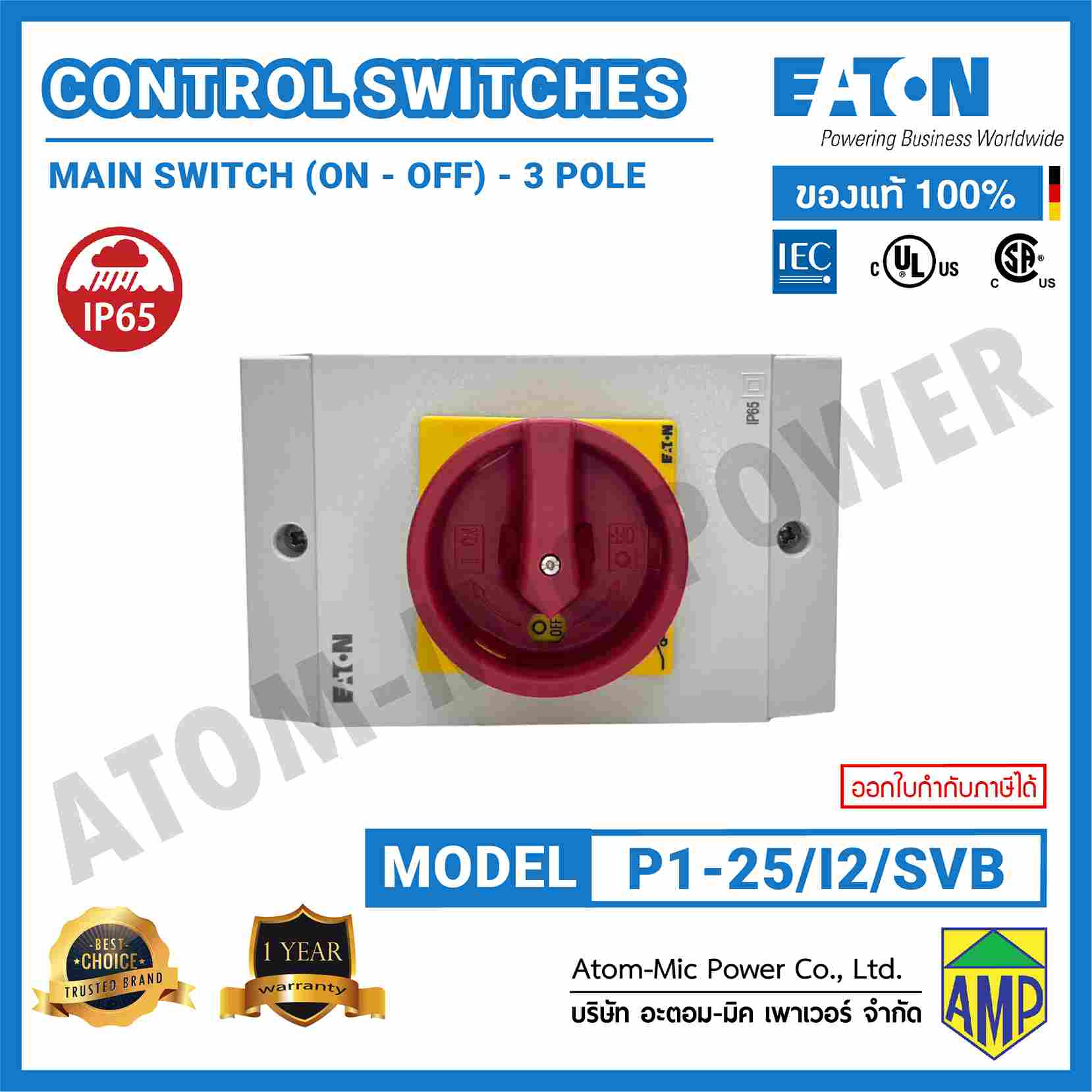

– Product Type : Main switch
– Catalog Notes : Rated Short-time Withstand Current (Icw) for a time of 1 second
– Fitted with : Red rotary handle and yellow locking ring
– Functions : Interlockable, Emergency switching off function
– Locking facility : Lockable in the 0 (Off) position
– Number of poles : 3
– Degree of protection (front side) : IP65
– Rated impulse withstand voltage (Uimp) : 6000 V AC
– Safe isolation : 440 V AC, Between the contacts, According to EN 61140
– Suitable for : Ground mounting
– Switching angle : 90 °
– Screw size : M4, Terminal screw
– Rated conditional short-circuit current (Iq) : 80 kA
