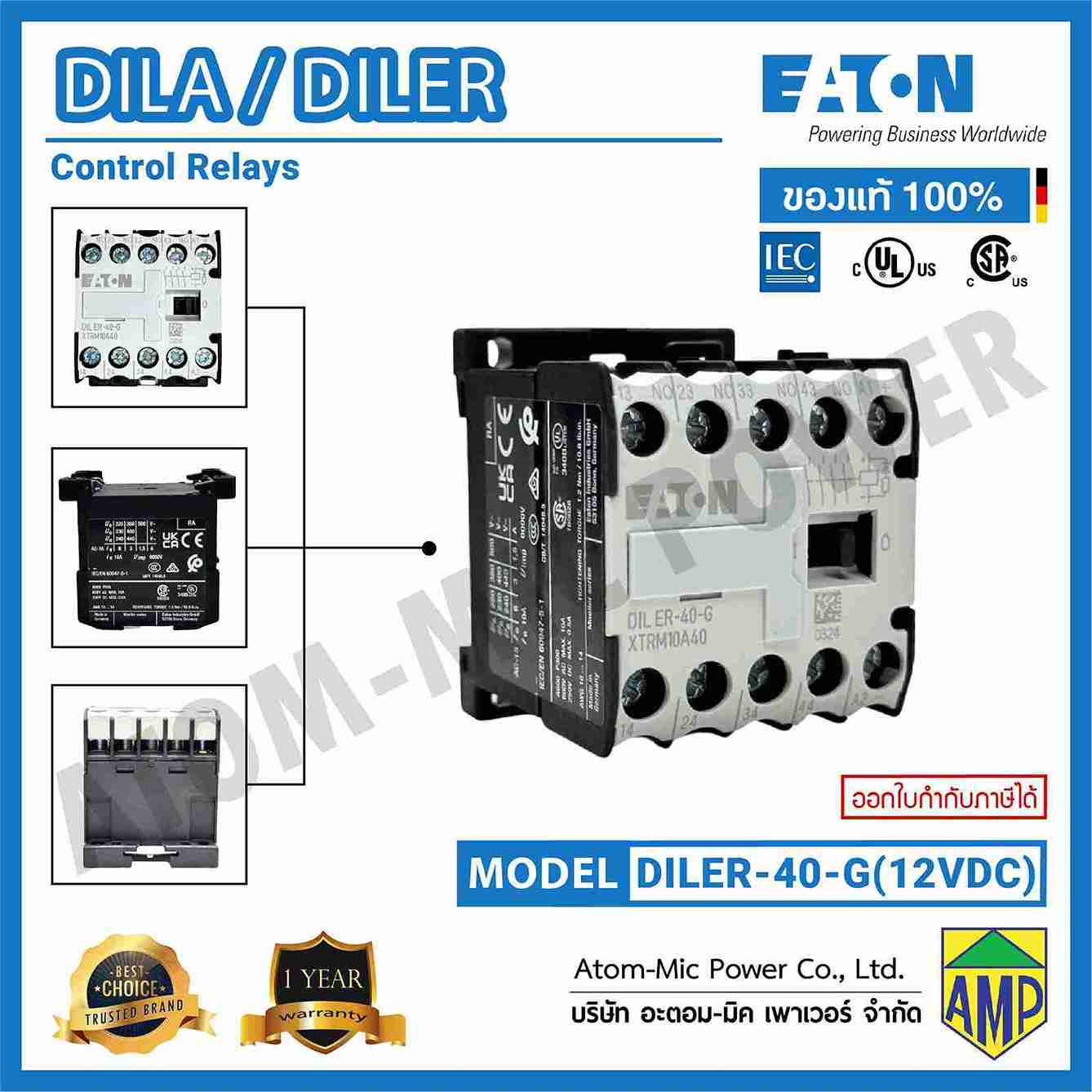

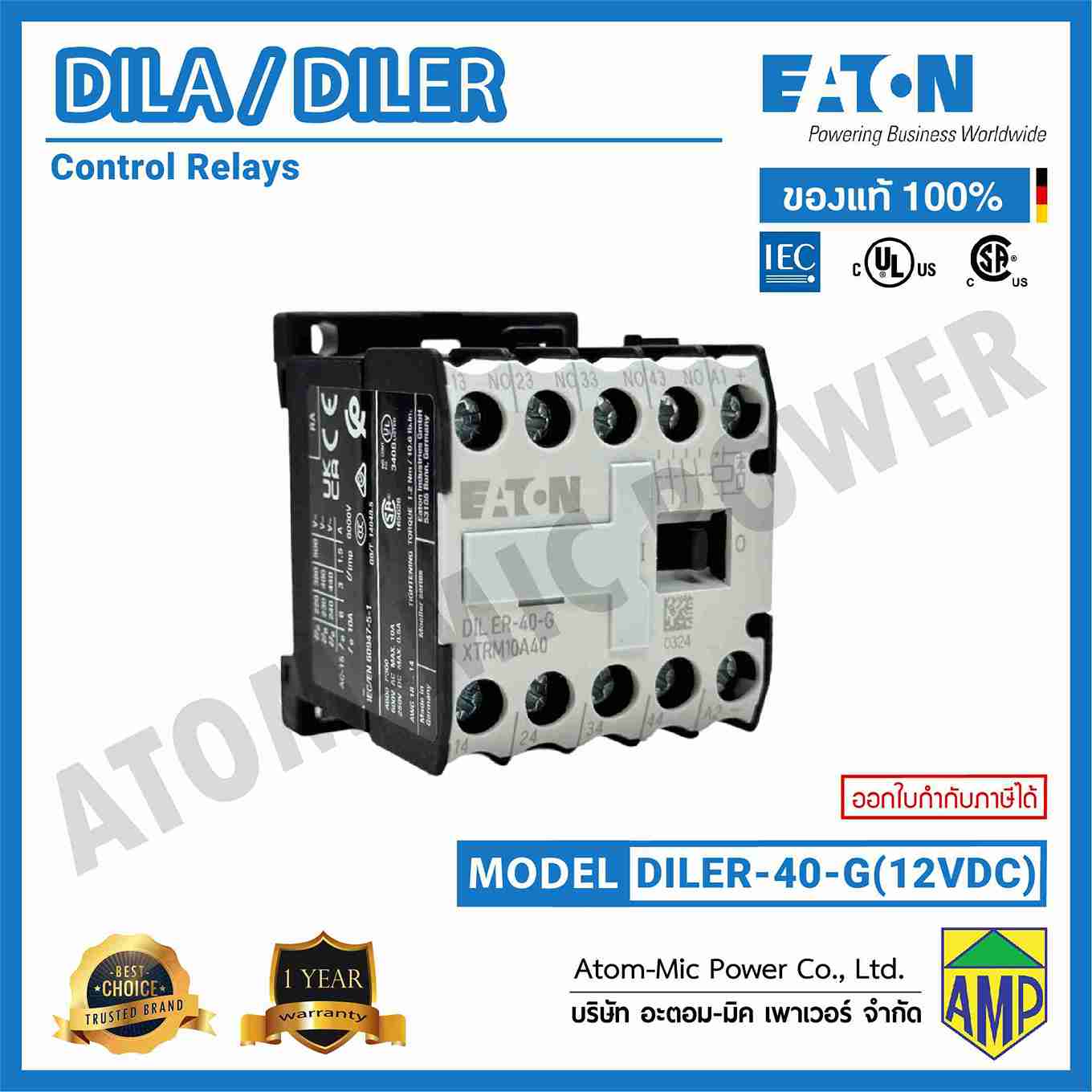

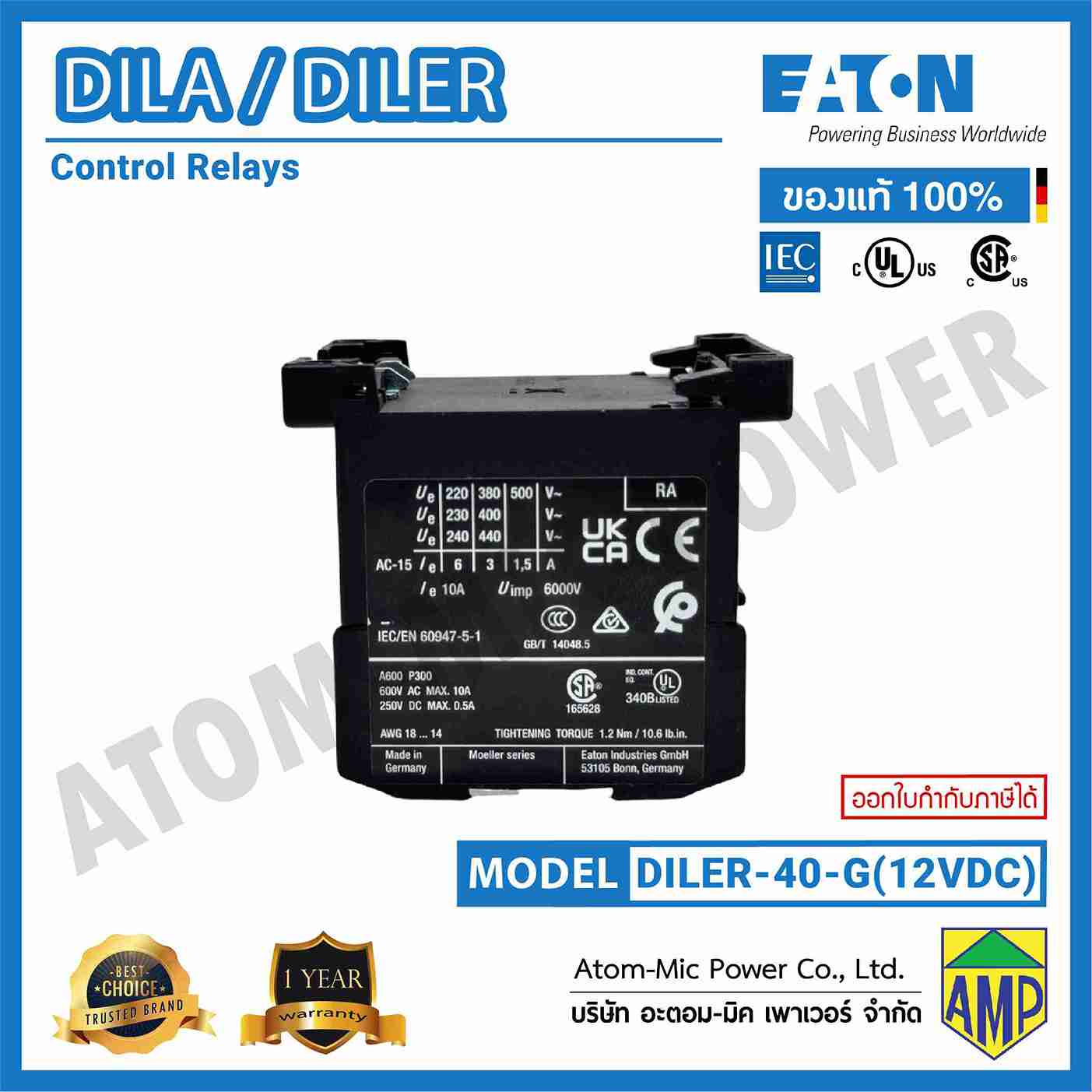

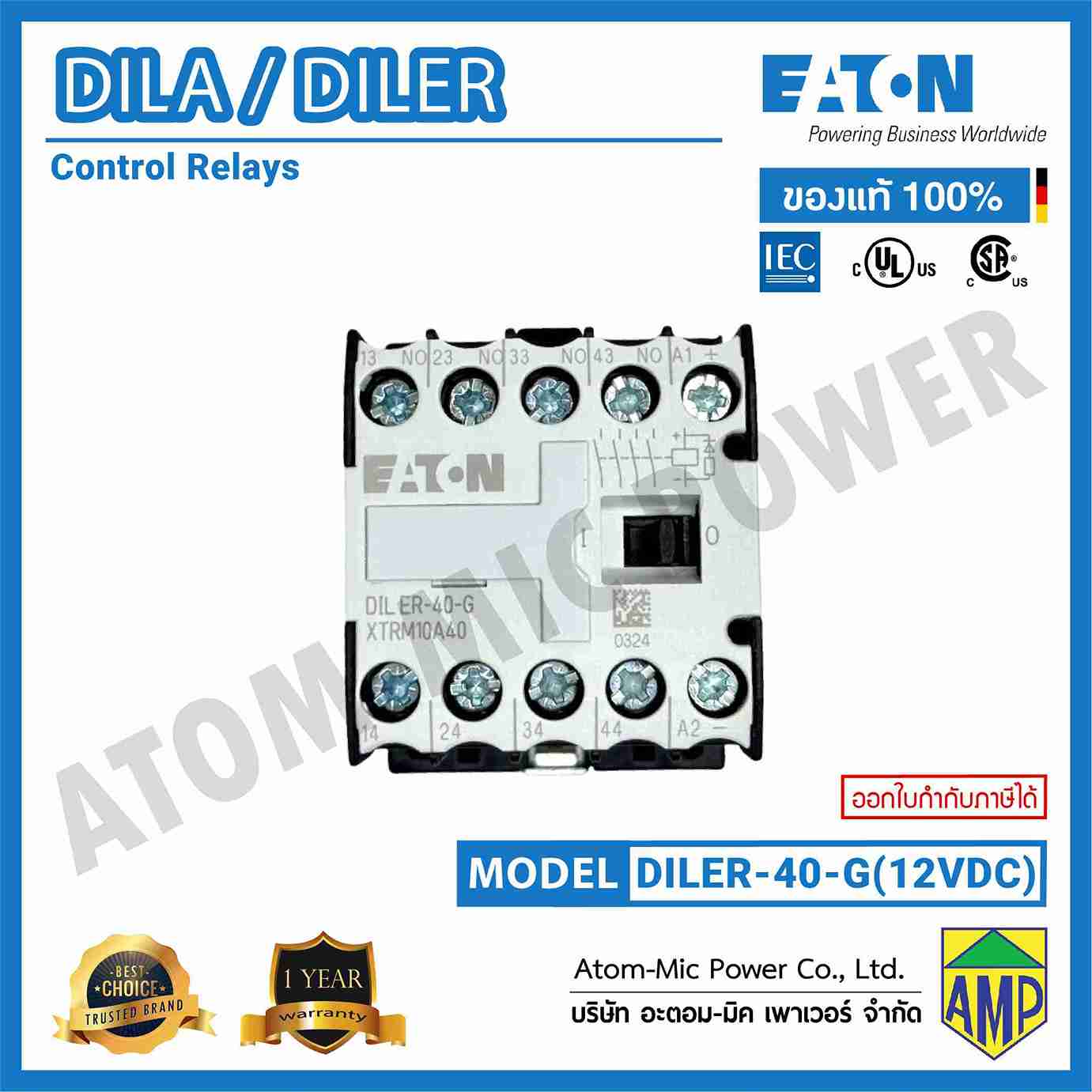

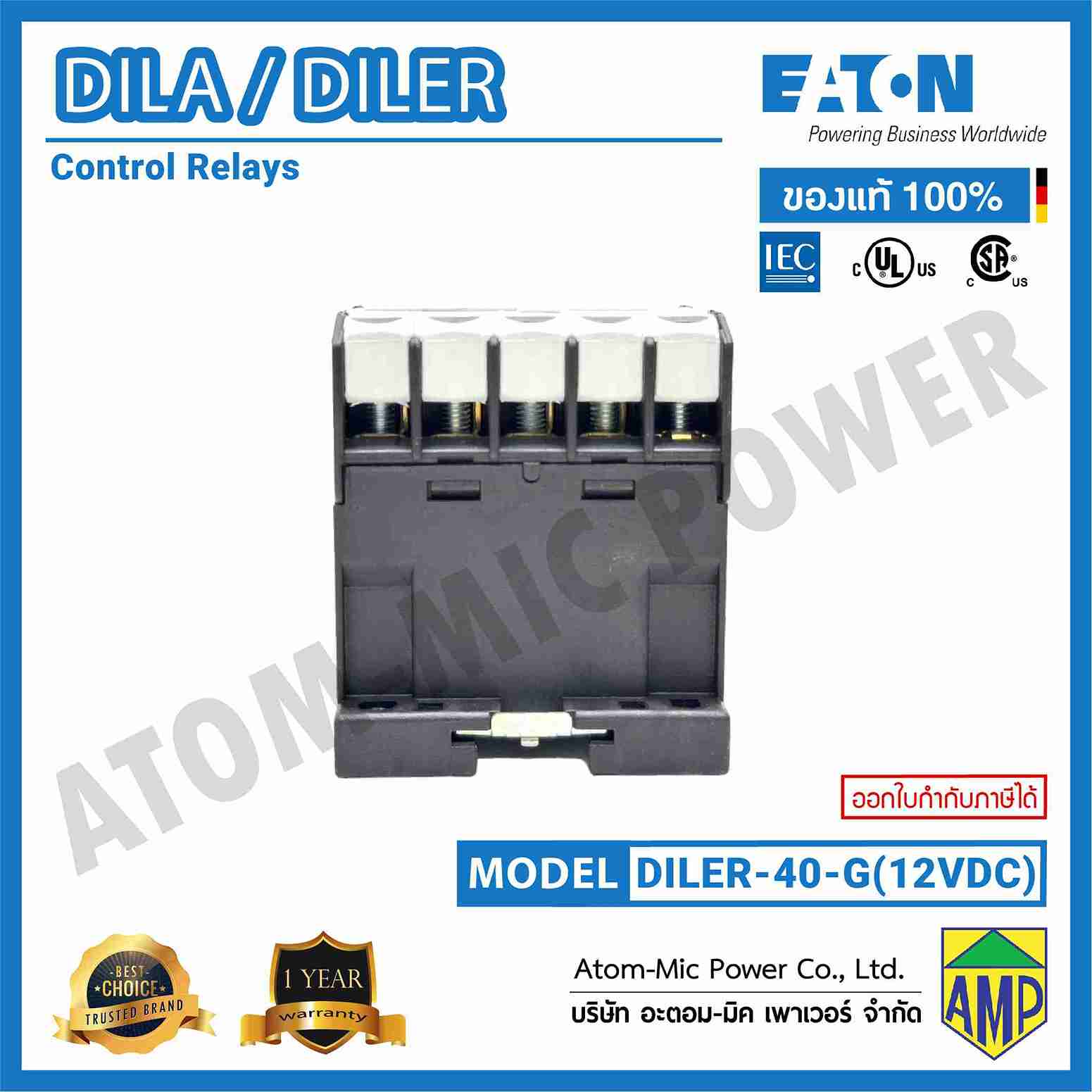

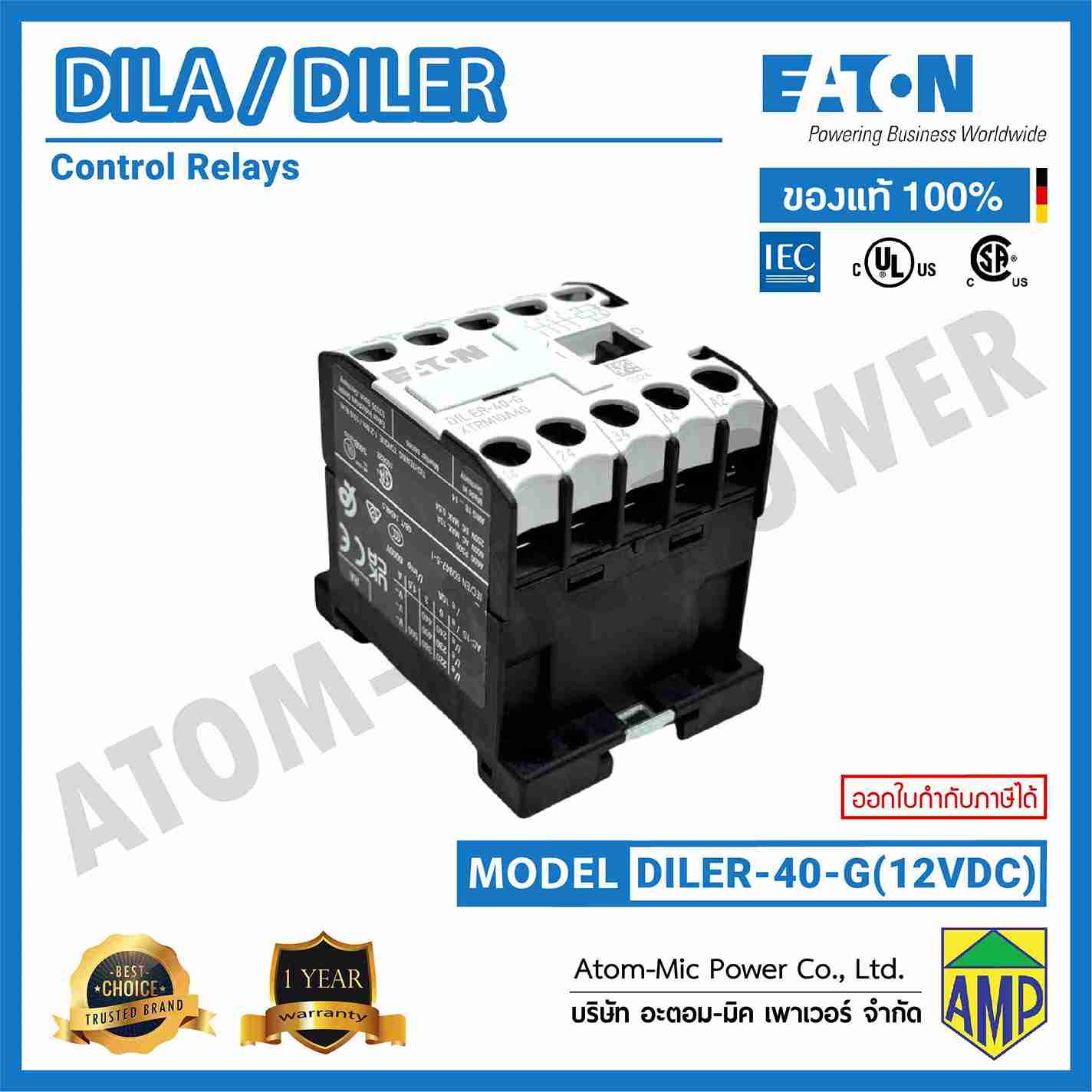

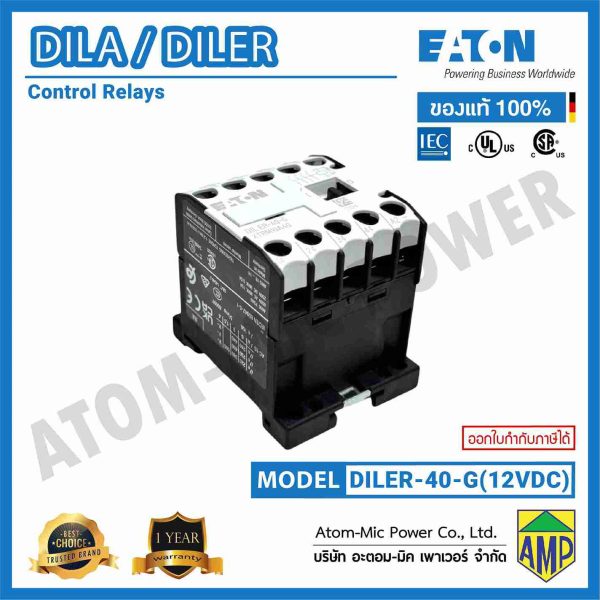

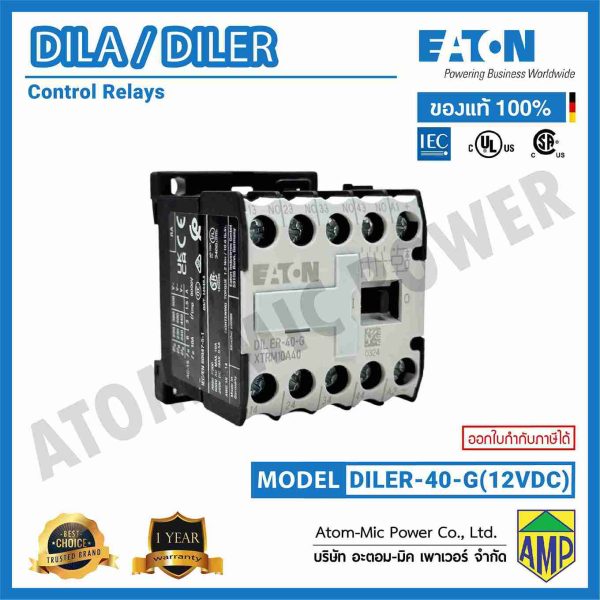

EATON – Contactor relay – DILER-40-G (12 V DC, 4 N/O )

รายละเอียดสินค้า
– Product Length/Depth : 54 millimetre
– Product height : 58 millimetre
– Product width : 45 millimetre
– Product weight : 0.206 kilogram
– Product Type : Control relay
– Fitted with : Interlocked opposing contacts
– Application : Contactor relays
– Degree of protection : IP20
– Mounting method : DIN-rail/screw
– Mounting position : As required (except vertical with terminals A1/A2 at the bottom)
– Operating frequency : 9000 Operations/h
– Rated impulse withstand voltage (Uimp) : 6000 V AC
– Voltage type : DC
– Stripping length (main cable) : 8 mm
– Screw size : M3.5, Terminal screw
– Tightening torque : 1.2 Nm, Screw terminals
– Rated operational voltage (Ue) at AC – max : 600 V
– Rated insulation voltage (Ui) : 690 V
– Power consumption (pick-up) at DC : 2.3 W
– Power consumption (sealing) at DC : 2.3 W
– Rated control supply voltage (Us) at DC – max : 12 V
