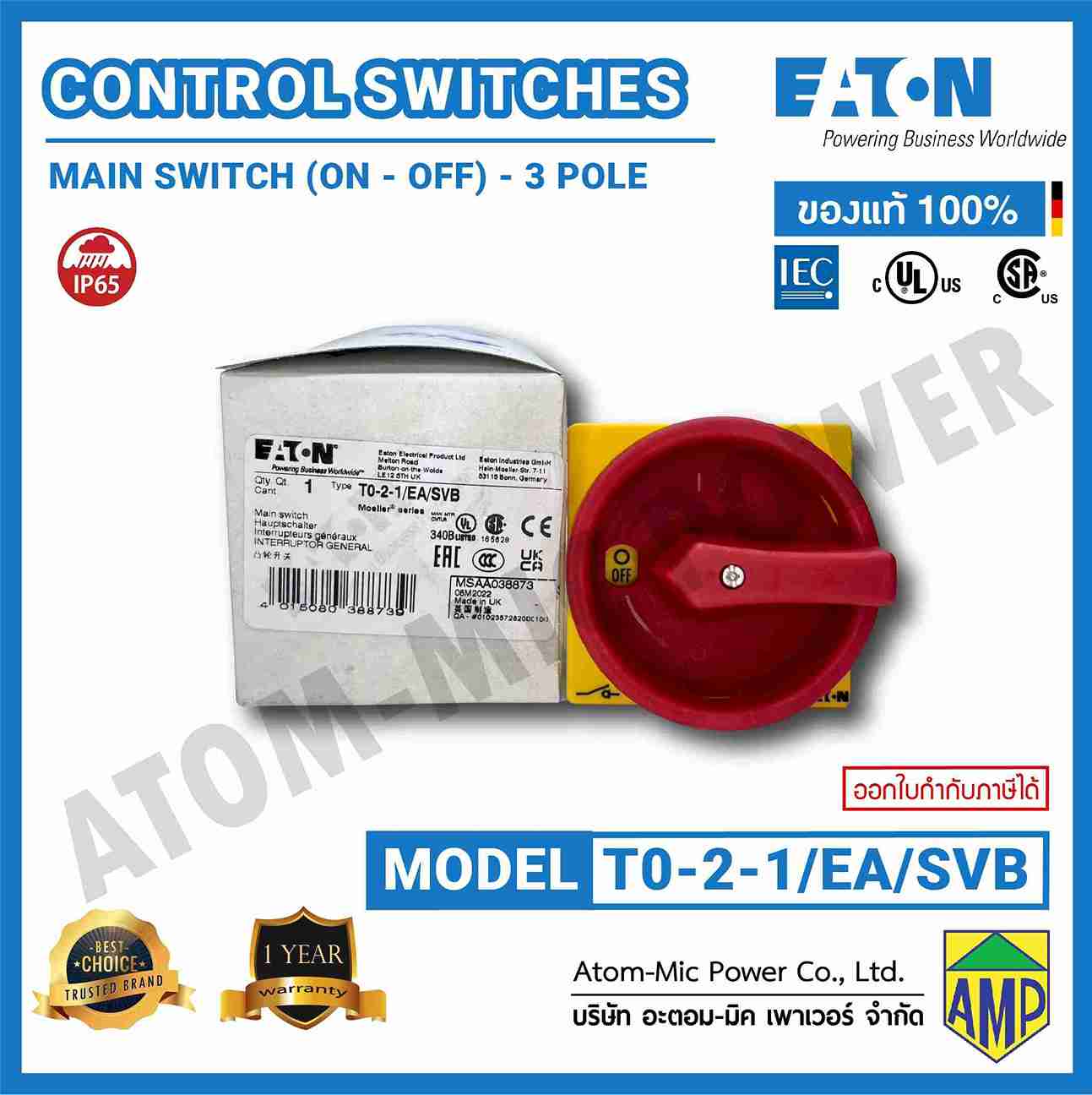

EATON - MAIN SWITCH - T0-2-1/EA/SVB (20 A, 2 contact unit(s), 3 pole)

General specifications

Product Tradename : T0

Product Type : Main switch

Product Sub Type : None

Catalog Notes : Rated Short-time Withstand Current (Icw) for a time of 1 second

Fitted with : Red rotary handle and yellow locking ring

Functions : Emergency switching off function, Interlockable

Locking facility : Lockable in the 0 (Off) position

Number of poles : Three-pole

Degree of protection : NEMA 12

Degree of protection (front side) : IP65

Lifespan, mechanical : 400,000 Operations

Mounting method : Flush mounting

Mounting position : As required

Number of contact units : 2

Operating frequency : 1200 Operations/h

Overvoltage category : III

Pollution degree : 3

Rated impulse withstand voltage (Uimp) : 6000 V AC

Safe isolation : 440 V AC, Between the contacts, According to EN 61140

Screw size : M3.5, Terminal screw

Tightening torque : 1 Nm, Screw terminals, 8.8 lb-in, Screw terminals

Rated operational voltage (Ue) at AC – max : 690 V

Rated uninterrupted current (Iu) : 20 A

Uninterrupted current : Rated uninterrupted current Iu is specified for max. cross-section.

Rated conditional short-circuit current (Iq) : 6 kA

Rated short-time withstand current (Icw) : 0.32 kA, 320 A, Contacts, 1 second

Voltage per contact pair in series : 60 V

Weight	142 g
Dimensions	1.1 × 6.5 × 7.4 cm
