– Product Type : Main switch
– Catalog Notes : Rated Short-time Withstand Current (Icw) for a time of 1 second
– Fitted with : Red rotary handle and yellow locking ring
– Functions : Interlockable, Emergency switching off function
– Locking facility : Lockable in the 0 (Off) position
– Number of poles : 3
– Degree of protection (front side) : IP65
– Rated impulse withstand voltage (Uimp) : 6000 V AC
– Safe isolation : 440 V AC, Between the contacts, According to EN 61140
– Suitable for : Ground mounting
– Switching angle : 90 °
– Screw size : M4, Terminal screw
– Rated conditional short-circuit current (Iq) : 80 kA

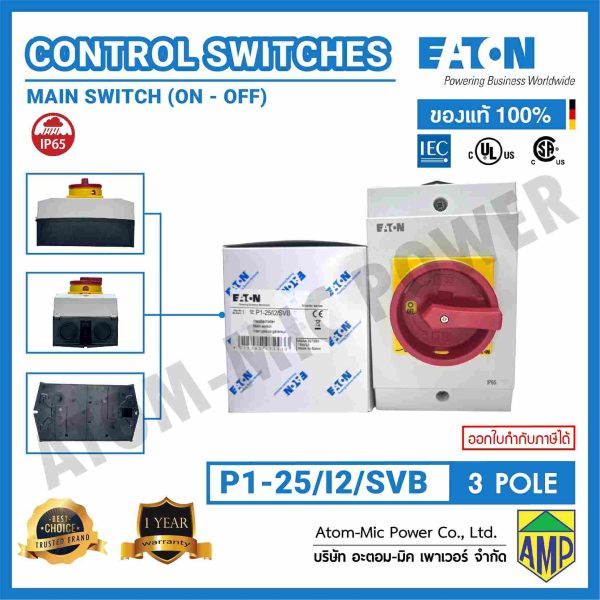

EATON – Control Switches – Main Switch – P1-25/I2/SVB
฿1,800.00 Original price was: ฿1,800.00.฿1,667.00Current price is: ฿1,667.00.
Main Switch
สวิตช์ตัดวงจรไฟฟ้า แบบบิดเปิด-ปิด พร้อมกล่อง 3P 25A, IP65,เหลือง-แดง
SKU: P1-25/I2/SVB
Categories: MAIN SWITCH & LOAD BREAK, EATON MAIN SWITCH
Weight | 0.45 g |
---|---|
Dimensions | 14 × 6 × 5 cm |
